| Quantity: | |
|---|---|

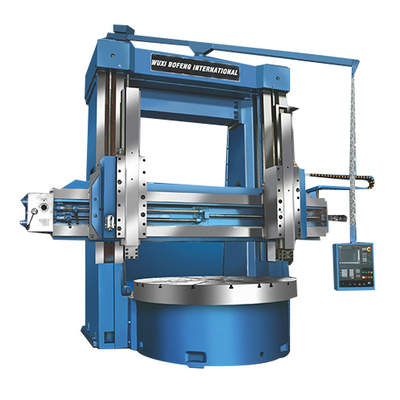

C5225E: PLC control
CJK5225: CNC control ( System: GSK, SYNTEC, FANUC, SIEMENS)
Optional：Electric turret / ATC tool magazine
Technical Parameters:
| Model | C5225E -10 |
| CJK5225 -10 | |
| Max.Turning Dia.(mm) | 2500 |
| Working Table Dia.(mm) | 2250 |
| Max. Height of Workpiece (mm) | 1600/2100/2600 |
| Max.Weight of Workpiece (T) | 1900/1/10 |
| Max.Cutting Force of Right Rail Head (Kn) | 35 |
| Max.Cutting Force of Left Rail Head (Kn) | 30 |
| Max.Torque of Working Table (Kn.m) | 63 |
| Range of Working Table Speeds (16 steps) (r/min) | 2-63 |
| Swivel of Rail Head | ±30° |
| Range of Feed Rates (18 steps) (mm/min) | 0.25-90 |
| Travel of Cross Beam (mm) | 1250/1750/2250 |
| Moving Speed of Cross Beam (mm/min) | 350 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Rapid Speed of Tool Post (mm/min) | 1560 |
| Height of Tool Bar Section (mm) | 40*50 |
| Power of Main Motor (Kw) | 55 |
| Dimension of Machine (mm) | 5040*4400*(4350/4850/5850) |
| Weight of Machine (T) | 32/34/35.5 |
| Model | C5225E-12 |
| CJK5225-12 | |
| Max.Turning Dia.(mm) | 2500 |
| Working Table Dia.(mm) | 2250 |
| Max. Height of Workpiece (mm) | 1600/2100/2600 |
| Max.Weight of Workpiece (T) | 12 |
| Max.Cutting Force of Right Rail Head (Kn) | 35 |
| Max.Cutting Force of Left Rail Head (Kn) | 30 |
| Max.Torque of Working Table (Kn.m) | 63 |
| Range of Working Table Speeds (16 steps) (r/min) | 2-63 |
| Swivel of Rail Head | ±30° |
| Range of Feed Rates (18 steps) (mm/min) | 0.25-90 |
| Travel of Cross Beam (mm) | 1250/1750/2250 |
| Moving Speed of Cross Beam (mm/min) | 350 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Rapid Speed of Tool Post (mm/min) | 1560 |
| Height of Tool Bar Section (mm) | 40*50 |
| Power of Main Motor (Kw) | 55 |
| Dimension of Machine (mm) | 5040*4400*(4350/4850/5850) |
| Weight of Machine (T) | 32/34/35.5 |
| Model | C5225E-16 |
| CJK5225-16 | |
| Max.Turning Dia.(mm) | 2500 |
| Working Table Dia.(mm) | 2250 |
| Max. Height of Workpiece (mm) | 1600/2100/2600 |
| Max.Weight of Workpiece (T) | 16 |
| Max.Cutting Force of Right Rail Head (Kn) | 35 |
| Max.Cutting Force of Left Rail Head (Kn) | 30 |
| Max.Torque of Working Table (Kn.m) | 63 |
| Range of Working Table Speeds (16 steps) (r/min) | 2-63 |
| Swivel of Rail Head | ±30° |
| Range of Feed Rates (18 steps) (mm/min) | 0.25-90 |
| Travel of Cross Beam (mm) | 1250/1750/2250 |
| Moving Speed of Cross Beam (mm/min) | 350 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Rapid Speed of Tool Post (mm/min) | 1560 |
| Height of Tool Bar Section (mm) | 40*50 |
| Power of Main Motor (Kw) | 55 |
| Dimension of Machine (mm) | 5040*4400*(4350/4850/5850) |
| Weight of Machine (T) | 32/34/36 |
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
