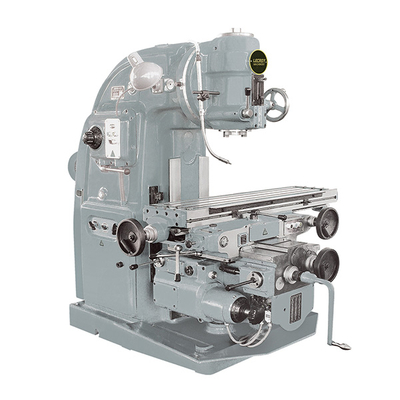

Universal Milling Machine (Vertical Series)
Main Features:
1.Robust construction and heavy duty design.
2. The main driving parts are made of alloy steel.
3.Relatively moving parts between machine body and guide rail is PVC laminating treated.
4.Sufficient power and large speed range which make full use of the efficiency of tools.
5. Can be equipped with hard alloy tools to mill with fast speed.
6. The spindle is equipped with impulse device for easier speed adjustment.
7. Universal milling head, round working table, dividing head, plain vise and DRO are for option.
Technical parameters:
| Model | X5032 | X5035 | X5040 | X5055 |
| Working table size (mm) | 320*1325/1700 | 350*1350/1700 | 400*1700/2000/2200 | 550*2000/2500 |
| Max. load on table (kg) | 500 | 600 | 800 | 1200 |
| T-Slot (N*W*D)(mm) | 3-18*70 | 3-18*70 | 3-18*90 | 5-18*100 |
| X Axis stroke Manual/Automatic (mm) | 700/680 1100/1080 | 700/680 1100/1080 | 900/880 1200/1180 1380/1360 | 1200/1180 2000/1950 |
| Y Axis stroke Manual/Automatic (mm) | 255/240 | 330/310 | 315/300 | 550/530 |
| Z Axis stroke Manual/Automatic (mm) | 370/350 | 370/350 | 385/365 | 710/700 |
| Spindle taper | 7:24 ISO 50 | 7:24 ISO 50 | 7:24 ISO 50 | 7:24 ISO 50 |
| Spindle speed (rpm) | 30-1500 | 30-1500 | 30-1500 | 30-1500 |
| Steps of spindle Speed | 18 | 18 | 18 | 18 |
| Spindle travel (mm) | 85 | 85 | 85 | 85 |
| Max. turning angle of milling head | ±45° | ±45° | ±45° | ±45° |
| Distance from spindle nose to table (mm) | 45-415 | 45-415 | 30-500 | 50-760 |
| Distance from spindle center to vertical column (mm) | 350 | 360 | 450 | 560 |
| Rapid moving speed X / Y /Z (mm/min) | 2300 / 2300 /700 | 2300 / 2300 /700 | 2300 / 1540 /770 | 2300 / 1540 /770 |
| X Feeding speed (mm/min) | 23.5-1180 | 23.5-1180 | 23.5-1180 | 16 -1180 |
| Y Feeding speed (mm/min) | 23.5-1180 | 23.5-1180 | 23.5-1180 | 16 -1180 |
| Z Feeding speed (mm/min) | 8-394 | 8-394 | 8-394 | 8-450 |
| Power of spindle Motor (Kw) | 7.5 | 7.5 | 11 | 11 |
| Feeding motor (Kw) | 2.2 | 2.2 | 3.0 | 3.0 |
| Machine weight (Kg) | 2800/3000 | 2900/3100 | 4250/4400/4500 | 5500/6000 |
| Standard Accessories | Optional Accessories | ||
| 1..Pin of end mill | 1.DRO for XY axis | ||
| 2. Morse taper sleeve | 2.DRO for XYZ axis | ||
| 3. Tie lod | 3.Dividing head | ||
| 4. Oil gun | 4.Round working table | ||
| 5.Tool box with tools | 5.Plain vice | ||
| 6.Adjusting foot pad | 6.Customizable voltage/ color |
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
