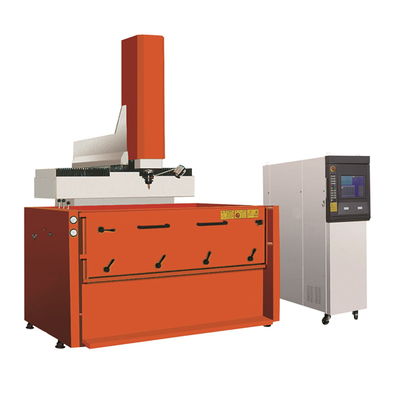

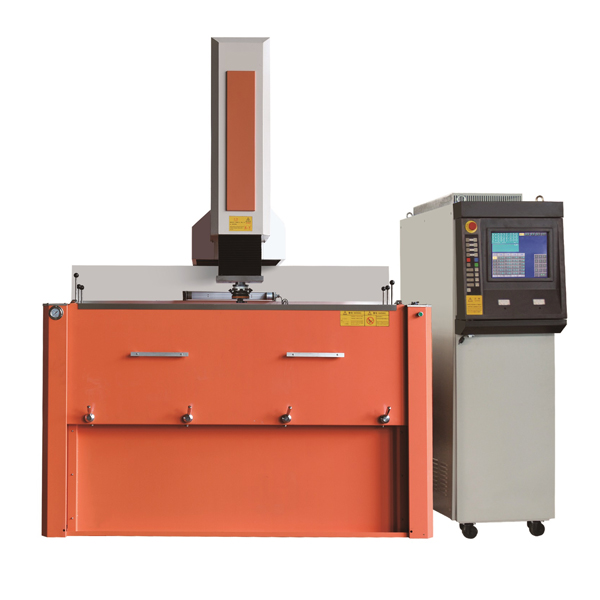

Ram type CNC540 CNC650 CNC850 CNC1060 CNC EDM machine

EDM Die Sinking Machine

Technical Parameters:

Model		Unit	CNC540	CNC650	CNC850	CNC1060
Worktable size   (length×width)		mm	850×450	900*550	1150×650	1250×800
X/Y/Z travel	X-axis	mm	500	650	800	1000
	Y-axis	mm	400	420	500	600
	Z-axis	mm	300	350	400	450
Oil groove inside size		mm	1350×860×500	1650*900*500	1800×1150×600	2000×1300×700
Maximum load of electrode		kg	50	100	120	150
Max.load on table		kg	800	2000	3000	3500
Distance from electrode plate to working table		mm	690-990	460-750	480-880	550-1000
Max. Processing speed		mm3/min	≥500mm3/min（graphite-stell)；≥400mm3/min（Cu-steel）
Min. electrode consumption			≤0.1%	≤0.1%	≤0.1%	≤0.1%
Best Roughness, Ra		Ra	Ra 0.1-0.2
Maximum working current		A	50	50	50	50
Total input power		KVA	10	10	10	10
Input power		V	220/380/415	220/380/415	220/380/415	220/380/415

Main Features:

Adaptive discharge machining process.

High speed lifting and lifting tool height control.

Spindle fixed point control, discharge gap detection

Groove oil level control.

Fire-proof control, Automatic alarm device.

Carbon deposit prevention function

Automatic measurement.

Precise edge and plane machining

Finish the servo system of

X Y Z, Panasonic AC servo motor.

X Y Z, resolution 0.4um, Minimum drive unit 1um..

Stainless steel edge for wear resistant.

Discharge system:

Touch screen 15“ TFT-LCD.

USB for data input and output.

Special processing circuit for cemented carbide.

AUTO processing function unit.

Automatic positioning function unit.

High speed and precision machining system.

Automatic Arc cleaning circuit.

Bulit-in database system.

CNC instruction, support G code, ISO code.

With memory and Reset after power off.

Error message indication function.
