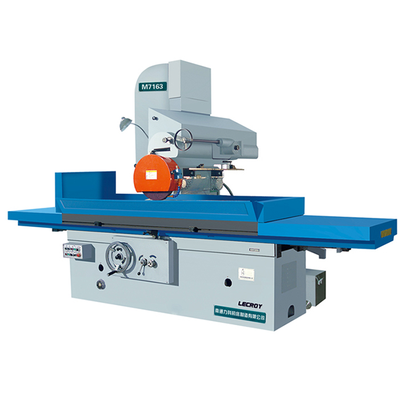

M7150 M7163 Automatic surface grinding machine

Robust construction and heavy duty design.
The longitudinal movement of the working table is drivn by hydraulic power.Stepless speed regulating.
The longitudinal movement of grinding head is driven by hydraulic power.Stepless speed regulating.
The grinding head is equipped with fast speed lifting motor,which increase the efficiency.
The vertical and horizontal rail way for grinding head is pasted with PTFE soft belt.Good wear resistance.
High precision,good stability and low noise.
GSK,Siemens,Fanuc CNC system is for option.



E-mail: sales@wxbofeng.com  david@wxbofeng.com

Wechat: ZF1012821391

Whatsapp: 0086 13771407736

QQ: 1012821391

Mobile: +86 13771407736





Availability:
Quantity:

Main Features:


Robust construction and heavy duty design.

The longitudinal movement of the working table is drivn by hydraulic power.Stepless speed regulating.

The longitudinal movement of grinding head is driven by hydraulic power.Stepless speed regulating.

The grinding head is equipped with fast speed lifting motor,which increase the efficiency.

The vertical and horizontal rail way for grinding head is pasted with PTFE soft belt.Good wear resistance.

High precision,good stability and low noise.

GSK,Siemens,Fanuc CNC system is for option.


Technical Parameters:

Model

M7132

M7140

M7150

M7163

Working Table Size (mm)

320*1000

400*1000

500*1250

630*1250

Max.Grinding SizeW*L*H(mm)

320*1000*400

400*1000*525

500*1200*525

1250*630*500

Longitudinal Movement of Working Table (mm)

200-1110

200-1110

200-1110

200-1350

Speed of  Working TableStepless Speed(m/min)

3/25

3/25

3/25

3/25

T-Slot No.

3

3

3

3

Width (mm)

18

18

18

22

Distance from Grinding Wheel Center to Table Surface (mm)

135-600

135-665

135-665

140-665

Max.Cross travel of grinding head(mm)

350

450

550

630

Max.Vertical travel of grinding head(mm)

400

665

665

665

Handwheel scale value(per revolution)(mm)

1

Grinding Wheel SizeOD*W*ID(mm)

Ф350*40*Ф127

Ф350*40*Ф127

Ф400*50*Ф203

Ф400*50*Ф203

Grinding wheel speed(r/min)

1440

1440

1440

1440

Rapid lifting motor(power)(Kw)

0.37

0.37

0.37

0.37

Total motor power(Kw)

11

11

12

14

Power of Grinding Head Motor (Kw)

7.5

7.5

7.5

11

Power of Hydraulic Pump (Kw)

3

3

5

5.5

Accuracy ( mm)

0.015*1000

0.015*1000

0.015*1000

0.015*1000

Roughness Ra ( μm)

 0.63

Magnet Chuck SizeW*L(mm)

320*1000

400*1000

500*1250

630*1250

Machine DimensionL*W*H(mm)

2800*1750*2350

4500*2000*2350

3800*2700*2800

3800*2700*2800

Net Weight (Kg)

4000

4500

5300

5600
