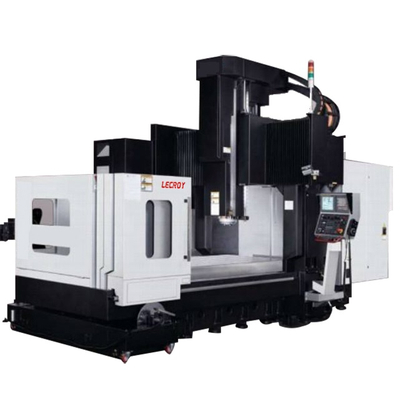

Gantry type vertical milling machine

Bed, columns and travel tracks form a solid frame structure
for high rigidity under hard machining conditions.
Taiwan HIWIN linear rail for all XYZ axis.
Different Operating system as optional:  FANUC, SIEMENS, GSK, LNC, SYNTEC.

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Availability:
Quantity:

Double Column Machining Center ( Gantry type)

Main Features:

1.Bed, columns and travel tracks form a solid frame structure for high rigidity under hard machining conditions.

2.The oversized column combined with box type beam construction features additional machine rigidity.

3.The slant beam construction with increased slide way surfaces efficiently upgrades force distribution area.            4.The spindle head is located at the center of beam, providing high movement accuracy, superior heavy cutting capability .

5. Equipped with spindle motor ball screw and double counter-balance cylinders are all properly located at the best positions.

6.Taiwan HIWIN linear rail for all XYZ axis.

7.Different Operating system as optional:  FANUC, SIEMENS, GSK, LNC, SYNTEC.


Technical parameters:

Model GMC3016 GMC3020 GMC4016 GMC4020
Travel ( X Axis) (mm) 3200 3200 4200 4200
Travel ( Y Axis)(mm) 2000 2600 2000 2600
Travel ( Z Axis)(mm) 1000 1000 1000 1000
Diatance: working table to  spindle nose(mm) 150-1150 150-1150 200-1200 200-1200
Effective width of gantry (mm) 2000 2600 2000 2600
Working table size(mm)

3000*1600

3000*2000

4000*1600

4000*2000

Max. load on table(Kg)

10000

12000

15000

16000

T-slot  (mm)

9-22*180

9-22*200

9-22*180

9-22*200

Spindle

BT50/190

BT50/190

BT50/190

BT50/190

Spindle speed (rpm)  ( Standard)

6000

6000

6000

6000

Spindle power (Kw)

15/18.5

15/18.5

22/26

22/26

Spindle torque (N.M)

143

143

140

140

X Y Z servo motor torque(N.M)

36/36/36

36/36/36

38/30/30

38/30/30

XYZ rapid moving speed X/Y/Z (m/min)

10/10/8

10/10/8

10/10/8

10/10/8

Max. feeding speed (mm/min)

5000

5000

5000

5000

Tool Magazine   optional

without

without

without

without

XYZ guide rail

Taiwan Linear rail

Taiwan Linear rail

Taiwan Linear rail

Taiwan Linear rail

X Y Z Positioning accuracy(mm)

0.03

0.03

0.03

0.03

X Y Z Repositioning accuracy(mm)

0.015

0.015

0.015

0.015

Dimension(mm)

8300×3800×4600

8500×4700×4600

11000x3800x4800

11000x4700x4800

Weight(Kg)

320000

360000

400000

450000
