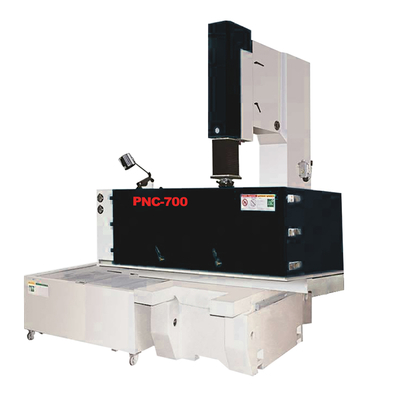

EDM die sinking machine with DC servo motor

Positive and Negative coordinate processing.
With W axis for moving machine head to load high product
Built in 3 axis Linear scale ( 1um or 5um)
Precision co-ordinate table on flat & V type turcide coated guide ways driven by ball screw
Double door and  large working  tank for ease of loading & unloading of workpiece
Oil level alarm, insufficient liquid level protection
With the quill running on preloaded cross roller bearing and ball screw for accuracyworking
XYZ all use DC servo motor, can process in XYZ direction separately
New generation superfine discharge ciruit for mirror surface
Hand held multi-function remote controller
Automatic carbon deposition detection function, adjusts various processing parameters automatically
Special circuits for deep hole and large area electrode processing
Self-diagnostic trouble shooting with alarm
Automatic lubrication system
Fire extinguisher, Smoke detector alarm
Power efficient high pressure dielectric pump

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Availability:
Quantity:

Main Features:

1.Positive and Negative coordinate processing.

2.With W axis for moving machine head to load high product

3.Built in 3 axis Linear scale ( 1um or 5um)

4.Precision co-ordinate table on flat & V type turcide coated guide ways driven by ball screw

5.Double door and  large working  tank for ease of loading & unloading of workpiece

6.Oil level alarm, insufficient liquid level protection

7.With the quill running on preloaded cross roller bearing and ball screw for accuracyworking

8.XYZ all use DC servo motor, can process in XYZ direction separately

9.New generation superfine discharge ciruit for mirror surface

10.Hand held multi-function remote controller

11.Automatic carbon deposition detection function, adjusts various processing parameters automatically

12.Special circuits for deep hole and large area electrode processing

13.Self-diagnostic trouble shooting with alarm

14.Automatic lubrication system

15.Fire extinguisher, Smoke detector alarm

16.Power efficient high pressure dielectric pump


Technical Parameters:


Model  Unit PNC-550 PNC-650  PNC-700
Working table  Mm 900*500 1000*600 1200*650
Oil groove size ( Inside) Mm 1410*800*550 1700*1000*620 1900*1060*650
Oil groove size ( Outside) Mm 1680*880*550 1930*1080*620 2140*1150*650
Height from working table after filled oil Mm 400 470 490
X travel Mm 550 650 700
Y travel Mm 450 550 600
Z travel Spindle travel Mm 250 300 300
2nd stage travel Mm 250 300 300
Distance from spindle to working table Mm 640 700 950
Maximum working current A 75 75 75
Max. Processing speed   mm3/min ≥500mm3/min
Min. electrode consumption
≤0.2%  ≤0.2%  ≤0.2%
Best Roughness, Ra Ra Ra0.4 Ra0.4 Ra0.4
Max.Electrode weight Kgs 100 150 200
Max. load on working table Kgs 1500 2000 2000
Machine weight Kgs 2150 3000 3500
Dimension Mm 1690*1560*2600 2200*1850*2650 2400*2010*2700
