Economic high speed edm wire cut machine.
Main Features:
Roller for X/Y axis, also called hard rail ( V rail);
With ±3° taper as standard, ±15°, ±30°, ±45° as option;
Accuracy: ±0.01/300mm;
Roughness: Ra 1.0-2.5 µm;
Low consumption, material saving.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
| Quantity: | |
|---|---|

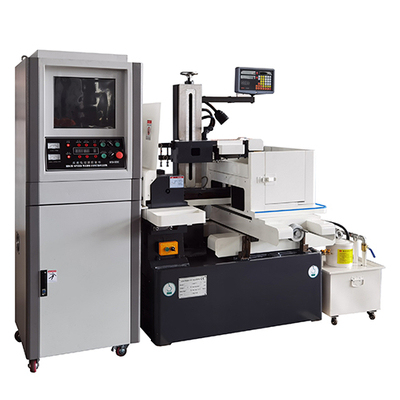

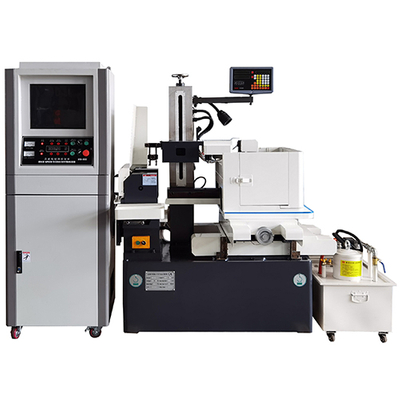

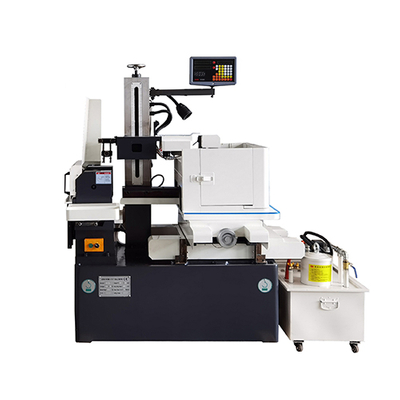

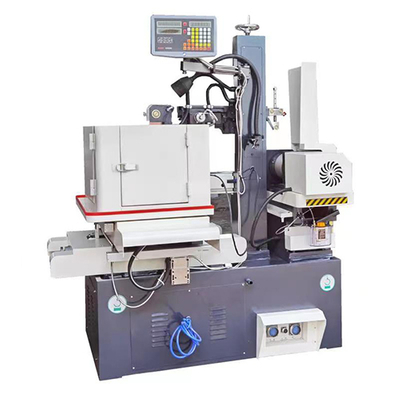

CNC EDM Wire Cut Machine DK Roller Rail series
Technical Parameters:
| Model | DK7720 | DK7725 | DK7735 | DK7745 |
| Table size (mm) | 490*380 | 580*400 | 740*470 | 830*570 |
| X*Y travel (mm) | 250*200 | 320*250 | 450*350 | 550*450 |
| Max. Z travel (mm) | 200 | 250 | 400 | 500 |
| Max. workpiece weight (kg) | 200 | 250 | 350 | 450 |
| Cutting speed (mm2/min) | Standard cutting speed:110-120, Max. cutting speed: 160-180 | |||
| Dimension L*W*H (mm) | 1200*900*1300 | 1300*1100*1500 | 1500*1200*1650 | 1700*1350*1700 |
| Net weight (kg) | 750 | 900 | 1100 | 1250 |
Main Features:
Roller for X/Y axis, also called hard rail ( V rail);
With ±3° taper as standard, ±15°, ±30°, ±45° as option;
Accuracy: ±0.01/300mm;
Roughness: Ra 1.0-2.5 µm;
Low consumption, material saving.
Different controller and different software:
a) High speed single cutt controller;
b) Multi-cut controller ( which improve the accuracy and finish);
Software: AUTOCUT, X8, HL, HF.
All kinds of voltage: 220/380/415/440V
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
CNC EDM Wire Cut Machine DK Roller Rail series
Technical Parameters:
| Model | DK7720 | DK7725 | DK7735 | DK7745 |
| Table size (mm) | 490*380 | 580*400 | 740*470 | 830*570 |
| X*Y travel (mm) | 250*200 | 320*250 | 450*350 | 550*450 |
| Max. Z travel (mm) | 200 | 250 | 400 | 500 |
| Max. workpiece weight (kg) | 200 | 250 | 350 | 450 |
| Cutting speed (mm2/min) | Standard cutting speed:110-120, Max. cutting speed: 160-180 | |||
| Dimension L*W*H (mm) | 1200*900*1300 | 1300*1100*1500 | 1500*1200*1650 | 1700*1350*1700 |
| Net weight (kg) | 750 | 900 | 1100 | 1250 |
Main Features:
Roller for X/Y axis, also called hard rail ( V rail);
With ±3° taper as standard, ±15°, ±30°, ±45° as option;
Accuracy: ±0.01/300mm;
Roughness: Ra 1.0-2.5 µm;
Low consumption, material saving.
Different controller and different software:
a) High speed single cutt controller;
b) Multi-cut controller ( which improve the accuracy and finish);
Software: AUTOCUT, X8, HL, HF.
All kinds of voltage: 220/380/415/440V
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
