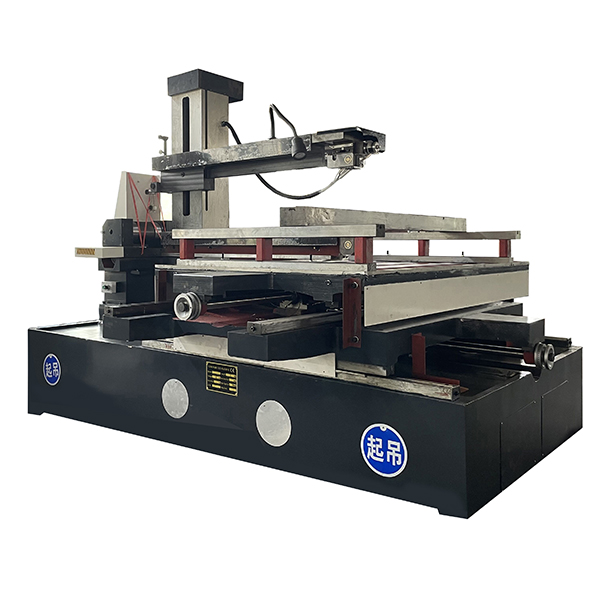

DK77120 DK77120F DK77160 DK77160F large EDM wire cut machine

Economic high speed edm wire cut machine.



Main Features:

Roller for X/Y axis, also called hard rail ( V rail);

With ±3° taper as standard, ±15°, ±30°, ±45° as option;

Accuracy: ±0.01/300mm;

Roughness: Ra 1.0-2.5 µm;

Low consumption, material saving.



E-mail: sales@wxbofeng.com  david@wxbofeng.com

Wechat: ZF1012821391

Whatsapp: 0086 13771407736

QQ: 1012821391

Mobile: +86 13771407736





Availability:
Quantity:

CNC EDM Wire Cut Machine       DK Roller Rail series


Technical Parameters:

Model DK77120F DK77160F DK77120 DK77160
Table size (mm) 2000*1300 2450*1780 1650*1150 1900*1150
X*Y travel (mm) 1600*1200 2000*1600 1200*1000 1400*1000
Max. Z  travel (mm) 900 900 800/1000 800
Max. workpiece weight (kg) 4500 6000 3000 2600
Cutting speed (mm2/min) Standard cutting speed:110-120,    Max. cutting  speed: 160-180
Dimension L*W*H (mm) 3300*3400*2600 3900*3300*3000 3000*2800*2500 3000*2800*2500
Net weight (kg) 8500 13500 5200 5800


Main Features:

Roller for X/Y axis, also called hard rail ( V rail);

With ±3° taper as standard, ±15°, ±30°, ±45° as option;

Accuracy: ±0.01/300mm;

Roughness: Ra 1.0-2.5 µm;

Low consumption, material saving.



Different controller and different software:

a) High speed single cutt controller;

b) Multi-cut controller ( which improve the accuracy and finish);

Software: AUTOCUT, X8, HL, HF.



All kinds of voltage: 220/380/415/440V



details of DK77 wire edm machine




details of wire cut edm machine




fast speed wire edm machine vertical cabinet1







Company & Workshops

BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.


wire cutting and spark machine workshops


Milling macine lathe and grinder workshops


Production Equipments

The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.

production equipments


Test & Inspection

All machines will be tested before shipment.

test and inspection



Package & Delivery

load and delivery
