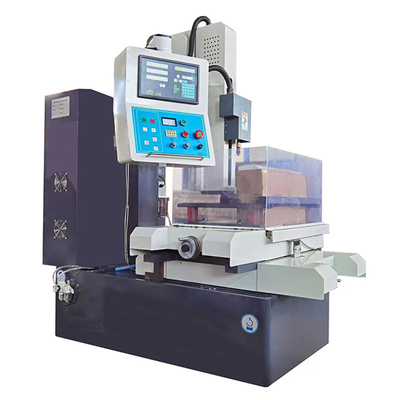

EDM Drilling Machine with Servo motor
Main Feature:
XYZ linear rail, XY with motor for fix position.
Servo motor for Z axis, improved return speed.
Drilling diameter from 0.2mm to 3mm, even 0.15mm.
Auto deep control, blind hole can also be maken.
Can drill on oblique and curved surface directly.
X,Y with DRO, optical linear rule and digital read out ( Standard)
Z axis DRO, with depth setting function (optional)
Steel water protection cover.
Swivel lever for operating panel.
City water or pure water as coolant, low cost and no pollution.
Techinical parameters:
| Model | DD703.30A | DD703.40A |
| Working table size(mm) | 360×480 | 540×780 |
| Stroke X-Y（mm） | 300×400 | 400×500 |
| Electrode material | Copper / Brass tube | |
| Electrode diameter（mm） | Φ0.2-Φ3.0 | Φ0.2-Φ3.0 |
| Working stroke Z axis (mm) | 300 | 300 |
| Spindle stroke W axis（mm） | 300 | 400 |
| Spindle rotating speed(mm/min) | 20-120 | 20-120 |
| Distance between working table & guider(mm) | 300 | 350 |
| Max. drilling speed (mm/min) | 30-60 | |
| Max. working current ( A) | 30 | 30 |
| Max. consumption power ( KVA) | 3.5 | |
| Power （V/Hz） | 3 Ph, 220V / 380V / 415V， 50/60Hz | |
| Capacity of water tank（L） | 25 | 25 |
| Max.pressure of working fluid（MPa） | 7.0 | 7.0 |
| Dimension（L×W×H）(mm) | 1060×750×1700 | 1600×1300×1800 |
| Weight（kg） | 650 | 1400 |
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
