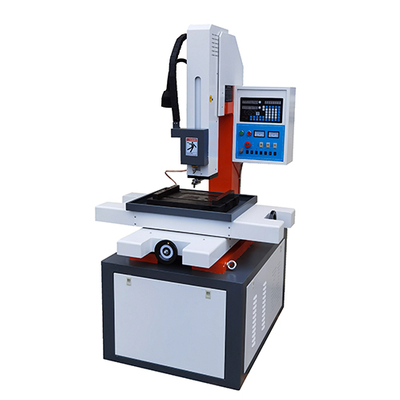

Main Feature:
Drilling diameter from 0.3mm to 3mm. The maximum depth ratio could be 300:1.
Auto deep control, blind hole can also be maken.
Precision (hole straightness) is less than 0.04 mm.
Can drill on oblique and curved surface directly.
X,Y axis digital read out, Z axis digital read out as optional. ( Depth setting is optional)
Fast processing speed and low consumption.
Can use water as coolant, low cost and no pollution.
Techinical parameters:
| Model | DD703.30 | DD703.40 | DD703.50 |
| Working table size (mm) | 360×480 | 540×780 | 650×1000 |
| Stroke X-Y (mm) | 300×400 | 400×500 | 500×630 |
| Electrode diameter (mm) | Φ0.3-Φ3.0 | Φ0.3-Φ3.0 | Φ0.3-Φ3.0 |
| Working stroke Z axis (mm) | 300 | 300 | 500 |
| Spindle stroke W axis (mm) | 300 | 400 | 600 |
| Turn head (C axis）speed (mm/min) | 20-120 | 20-120 | 20-120 |
| Distance between working table & guider (mm) | 300 | 350 | 500 |
| Power (V/Hz) | 3 Phase 220, 230, 380, 415V /50, 60HZ | ||
| Max. working current (A) | 30 | 30 | 30 |
| Capacity of working fluid (L) | 25 | 25 | 25 |
| Max.pressure of working fluid (MPa) | 7 | 7 | 7 |
| Dimension (L×W×H）(mm) | 1060×750×1700 | 1600×1300×1800 | 1950×1500×2100 |
| Weight (kg) | 600 | 1400 | 1800 |
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
