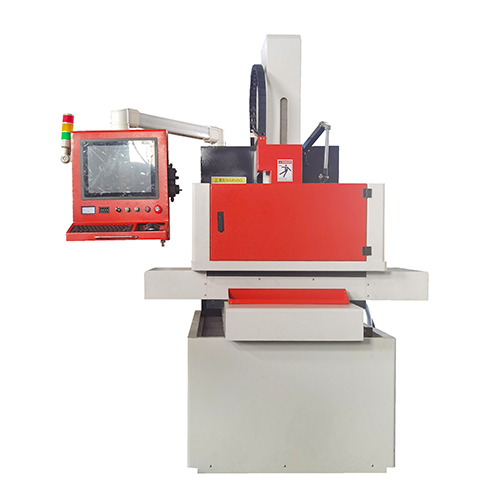

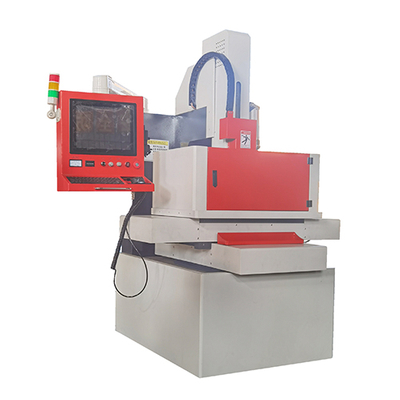

CNC450 CNC EDM Hole Drilling Machine

XYZ all linear rail to support heavy load and move quickly to ensure precise positioning.
Marble working table with stainless bracket, no rust.
Drilling diameter from 0.2mm to 3mm. The maximum depth ratio could be 300:1.
Capable of drilling all kinds of conductive material, and drill on all kinds shape, such as oblique and curved surface.
Special program for carbide such as tungsten, Fast processing speed and low consumption.
XY Hydbrid motor, Z servo control, 4th axis is optional.
Industrial PC control, Win7 operation system, support DXF file.
Program for many different diameter of holes in one process.
Real-time control, Discharge process monitoring.
with DRO for XYZ, with depth setting.
With data memory if power cut off.
With recycling coolant tank and filtering system (optional)


E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Availability:
Quantity:

Main Feature:

XYZ all linear rail to support heavy load and move quickly to ensure precise positioning.

Marble working table with stainless bracket, no rust.

Drilling diameter from 0.2mm to 3mm. The maximum depth ratio could be 300:1.

Capable of drilling all kinds of conductive material,  and drill on all kinds shape, such as oblique and curved surface.

Special program for carbide such as tungsten, Fast processing speed and low consumption.

XY Hydbrid motor,  Z servo control,   4th axis is optional.

Industrial PC control, Win7 operation system, support DXF file.

Program for many different diameter of holes in one process.

Real-time control, Discharge process monitoring.

with DRO for XYZ,  with depth setting.

With data memory if power cut off.

With recycling coolant tank and filtering system (optional)




Techinical parameters:

Model CNC450 CNC630 CNC450A
Working table size(mm) 600*420 800*550 500*400
Max. load on working table ( kg)  300 500 200
 Stroke X/Y(mm) 450*350 630*450 450*350
Servo stroke   Z (mm) 300 400 300
Spindle stroke W(mm) 300 400 300
Electrode diameter(mm) Φ0.15-Φ3.0 Φ0.15-Φ3.0 Φ0.15-Φ3.0
Positioning Accuracy (mm) ±0.01
Repeated Position Accuracy (mm)  ±0.005
Max. drilling speed 30-60mm/min
Spindle speed(rpm) 120
Distance to guider(mm) 350 450 350
Max. working current ( A)  30 30 30
Voltage  (V/Hz) 220/230,  380, 415V  /  50-60Hz,  3 Phase
Capacity of working fluid (L) 60 60 60
Max.pressure of working fluid(MPa) 8 8 8
Dimension(L×W×H)(mm) 1600×1200×2100 1800×1400×2100 1300×1200×2000
Weight(kg) 1000 1500 700




Company & Workshops

BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.


wire cutting and spark machine workshops


Milling macine lathe and grinder workshops


Production Equipments

The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.

production equipments


Test & Inspection

All machines will be tested before shipment.

test and inspection


Package & Delivery

load and delivery
