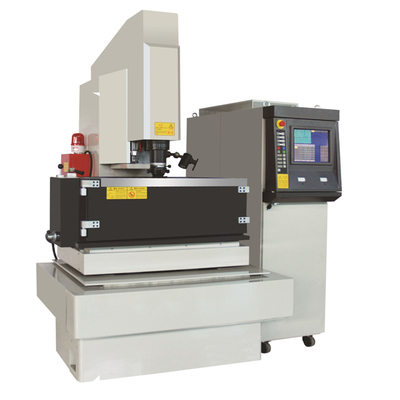

CNC325 CNC EDM sinker machine

Adaptive discharge machining process.
High speed lifting and lifting tool height control.
Spindle fixed point control, discharge gap detection
Groove oil level control.
Fire-proof control, Automatic alarm device.
Carbon deposit prevention function
Automatic measurement.
Precise edge and plane machining
Finish the servo system of
X Y Z, Panasonic AC servo motor.
X Y Z, resolution 0.4um, Minimum drive unit 1um..
Stainless steel edge for wear resistant.



E-mail: sales@wxbofeng.com  david@wxbofeng.com

Wechat: ZF1012821391

Whatsapp: 0086 13771407736

QQ: 1012821391

Mobile: +86 13771407736





Availability:
Quantity:

EDM Die Sinking Machine


Technical Parameters:

Model  Unit CNC320 CNC325  CNC430 CNC435
Worktable size   (length×width) mm 600×400 600×400 650×450 700×400
X/Y/Z travel X-axis mm 300 350 400 450
Y-axis mm 210 250 300 300
Z-axis mm 270 270 300 300
Oil groove inside size mm 950×620×360 950×620×360 1100×610×410 1090×640×450
Maximum load of electrode kg 50 50 50 75
Max.load on table kg 400 550 650 650
Distance from electrode plate to working table mm 295-565 280-550 300-600 300-600
Max. Processing speed   mm3/min ≥550mm3/min(graphite-stell);≥400mm3/min(Cu-steel)
Min. electrode consumption
≤0.1%  ≤0.1%  ≤0.1%  ≤0.1%
Best Roughness, Ra Ra Ra 0.1-0.2
Maximum working current A 50 50 50 50
Total input power KVA 10 10 10 10
Input power V 220/380/415 220/380/415 220/380/415 220/380/415


Main Features:

Adaptive discharge machining process.

High speed lifting and lifting tool height control.

Spindle fixed point control, discharge gap detection

Groove oil level control.

Fire-proof control, Automatic alarm device.

Carbon deposit prevention function

Automatic measurement.

Precise edge and plane machining

Finish the servo system of

X Y Z, Panasonic AC servo motor.

X Y Z, resolution 0.4um, Minimum drive unit 1um..

Stainless steel edge for wear resistant.


Discharge system:

Touch screen 15“ TFT-LCD.

USB for data input and output.

Special processing circuit for cemented carbide.

AUTO processing function unit.

Automatic positioning function unit.

High speed and precision machining system.

Automatic Arc cleaning circuit.

Bulit-in database system.

CNC instruction, support G code, ISO code.

With memory and Reset after power off.

Error message indication function.




Company & Workshops

BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.


wire cutting and spark machine workshops


Milling macine lathe and grinder workshops


Production Equipments

The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.

production equipments


Test & Inspection

All machines will be tested before shipment.

test and inspection

Package & Delivery

load and delivery
