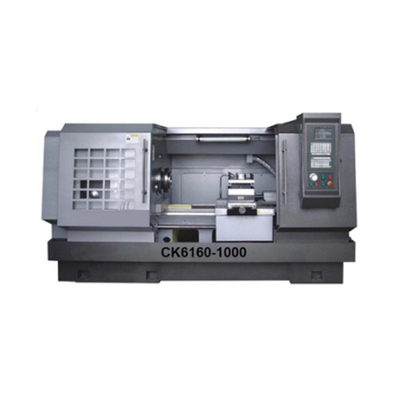

Heavy Duty CNC Turning Machine
1. Machine body are made of resin sand casting with timing treatment, which guarantees stability of the machine.
2.Horizontal and cross travels are driven by servo motor.
3.High frequency induction hardened guideways bonded with Turcite-B material enable
fast response of moving a*es, high accuracy and long lifespan.
4.High precision ball screws and rigid precision bearings ( NSK, SKF).
5.With unique auto gear changing mechanism, match with inverter control spindle motor,
stepless speed. ( 2 stages)
6.Full enclosed cover or semi-enlocsed cover.
7.GSK, Siemens, FANUC system.
8.Different electric turret tool changer.
Technical Parameters:
| Model | CK6136 | CK6140 | CK6150 | CK6160 | |
| Max. Dia. Over bed (mm) | 360 | 400 | 500 | 600 | |
| Max. Swing over tool (mm) | 180 | 210 | 310 | 350 | |
| Max. Turning length (mm) | 750/1000/1500/2000 | ||||
| Bed width (mm) | 360 | ||||
| X axis travel (mm) | 190 | 210 | 260 | 310 | |
| Z axis travel (mm) | 650/930/1430/1930 | ||||
| Spindle speed( rpm) | Stepless 40-1600 | 2 steps 40-500, 400-1800 | 2 steps 40-500, 400-1600 | 2 steps 40-500, 400-1600 | |
| Stepless (double speed motor) 100-2500 | |||||
| Spindle nose | C6 | ||||
| Spindle taper | MT6# | ||||
| Spindle bore dia (mm) | Ф 52/62 | Ф 52/62/80 | Ф 52/62/80/105 | Ф 80/105 | |
| Turret Tool changer | 4/6/8 | ||||
| Tool shank size (mm) | 20*20 | 25*25 | 25*25 | 25*25 | |
| Tool change time (Sec) | 2 | ||||
| X axis rapid traverse (mm/min) | 4000 | ||||
| Z axis rapid traverse (mm/min) | 6000 | ||||
| Cutting feed( X/Z) (mm/r) | 0.005-100 | ||||
| Taper of sleeve | 4# | 5# | 5# | 5# | |
| Dia. of sleeve (mm) | 65 | 75 | 75 | 75 | |
| Travel of sleeve (mm) | 120 | 150 | 150 | 150 | |
| Main motor power (kw) | 4 | 5.5 | 5.5/7.5 | 5.5/7.5 | |
| X/Z torque (NM) | 4/6 | 4/6 | 4/6 | 4/6 | |
| Dimension(mm) | L 750mm | 2150*1250*1600 | 2150*1300*1700 | 2350*1350*1850 | 2350*1400*1900 |
| Weight (kg) | 1350 | 1600 | 2000 | 2200 | |
| Dimension(mm) | L 1000mm | 2300*1250*1600 | 2300*1300*1700 | 2500*1350*1850 | 2500*1400*1900 |
| Weight (kg) | 1550 | 1700 | 2200 | 2400 | |
| Dimension(mm) | L 1500mm | 2800*1250*1600 | 2800*1300*1700 | 3000*1350*1850 | 3000*1400*1900 |
| Weight (kg) | 1750 | 2000 | 2500 | 2700 | |
| Dimension(mm) | L 2000mm | 3400*1250*1600 | 3400*1300*1700 | 3600*1350*1850 | 3600*1400*1900 |
| Weight (kg) | 1950 | 2300 | 2800 | 3000 | |
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
